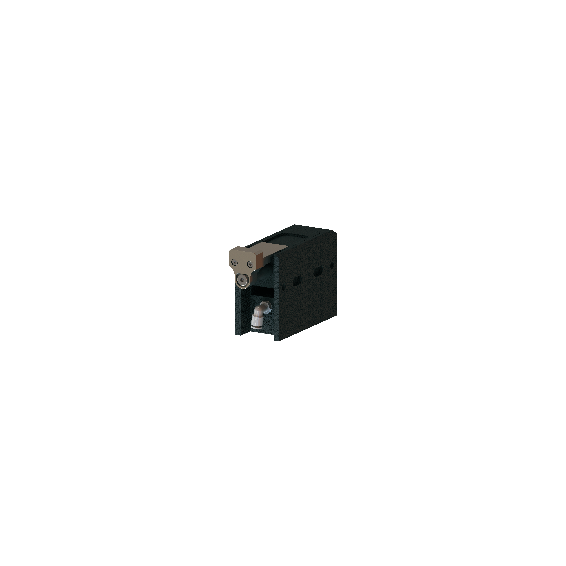

ZDQC50-200 Buffered Stopper
ZDQC50-200
| Model | Type | Stopper blocking surface direction | Blocking Load | Material | Surface Treatment | |||||
| ZDQC50-200 | Buffered Stopper | Single Acting | Standard Type | Middle | 200kg | Aluminum Material | Black Anodizing | |||
| ZDQC50-200-L | Left | |||||||||
| ZDQC50-200-R | Right Side | |||||||||
| ZDQCSS50-200 | Built In Position Detection Module | Middle | ||||||||
| ZDQCSS50-200-L | Left | |||||||||
| ZDQCSS50-200-R | Right Side | |||||||||
Features/Benefits
| Main Functions | Buffer stop, achieve accumulation and release. |
| Load Range (kg) | 10~200 (at conveying speed 6m/min) |
| Cylinder Action Type | Single-acting |
| Pneumatic Connector Size | G1/8 |
| Working Pressure (MPa) | 0.5 |
| Cushioning Function | Yes |
| Installation Method Method | Side Mountinging |
| Stopping Stroke (mm) | Buffer travel 35, Lowering Stroke 10 |
Cushioned stopping is not applicable for cumulative blocking operations, but can be utilized for positional stopping functions.

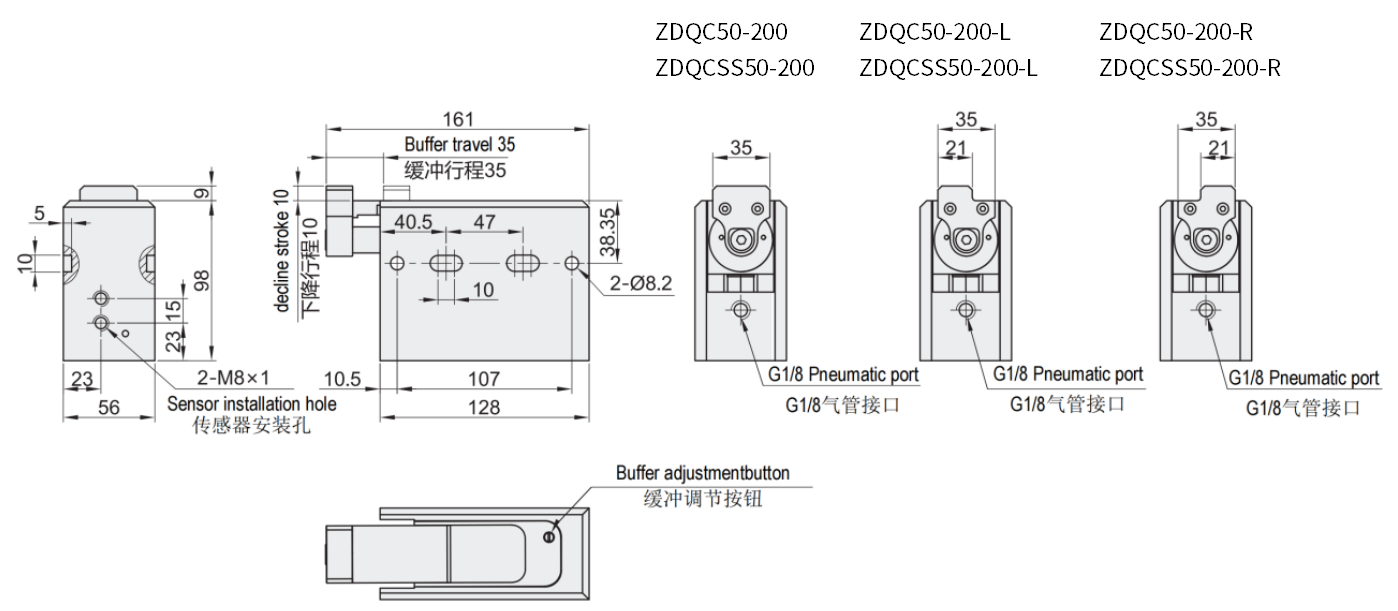

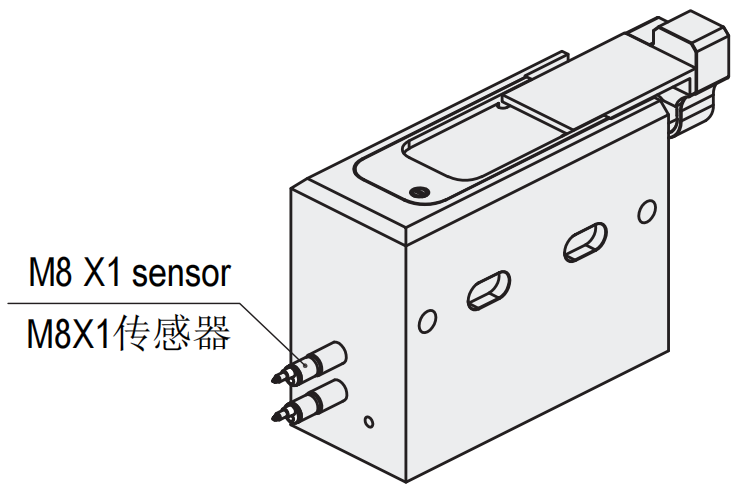

Sensor Mounting Diagram

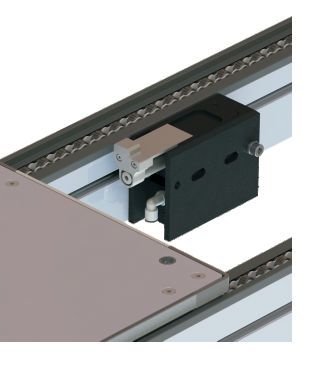

Example

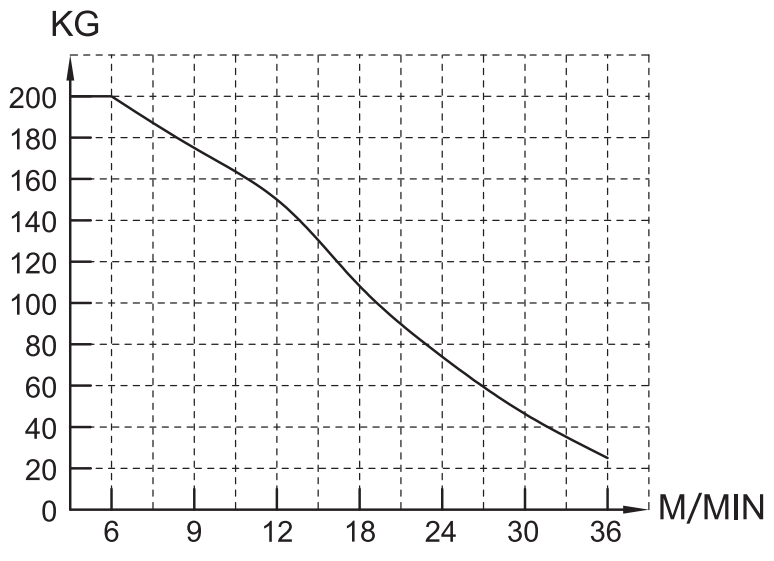

Stopping Capacity Curve
For load selection, refer to the Stopping Capacity Curve. All tabular data were tested at a working pressure of 0.5 MPa.
Pneumatic Circuit Diagram
Solenoid valves are not included in the scope of supply and must be purchased separately.
