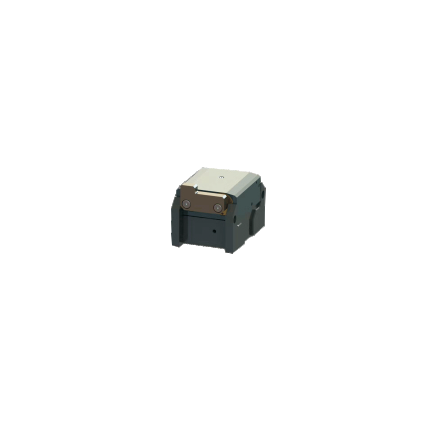

ZDQC40-150 Buffered Stopper
ZDQC40-150
| Model | Type | Stopper blocking surface direction | Blocking Load | Material | Surface Treatment | |||||
| ZDQC40-150 | Buffered Stopper | Single Acting | Standard Type | Center | 150kg | Aluminum
Material |
Black
Anodizing |
|||
| ZDQC40-150-L | Left | |||||||||
| ZDQC40-150-R | Right | |||||||||
| ZDQCSS40-150 | Built In Position Detection Module | Center | ||||||||
| ZDQCSS40-150- L | Left | |||||||||
| ZDQCSS40-150-R | Right | |||||||||
Features/Benefits
| Main Functions |
Buffer stop, achieve accumulation and release. |
| Load Range (kg) |
10~150(at conveying speed 6m/min) |
| Cylinder Action Type |
Single acting |
| Pneumatic Connector Size |
M5 |
| Working Pressure (MPa) |
0.5 |
| Cushioning Function |
Yes |
| Installation Method |
Side Mounting |
| Lowering Stroke (mm) |
Buffer Travel 20, Lowering Stroke 9 |
Cushioned stopping is not applicable for cumulative blocking operations, but can be utilized for positional stopping functions.

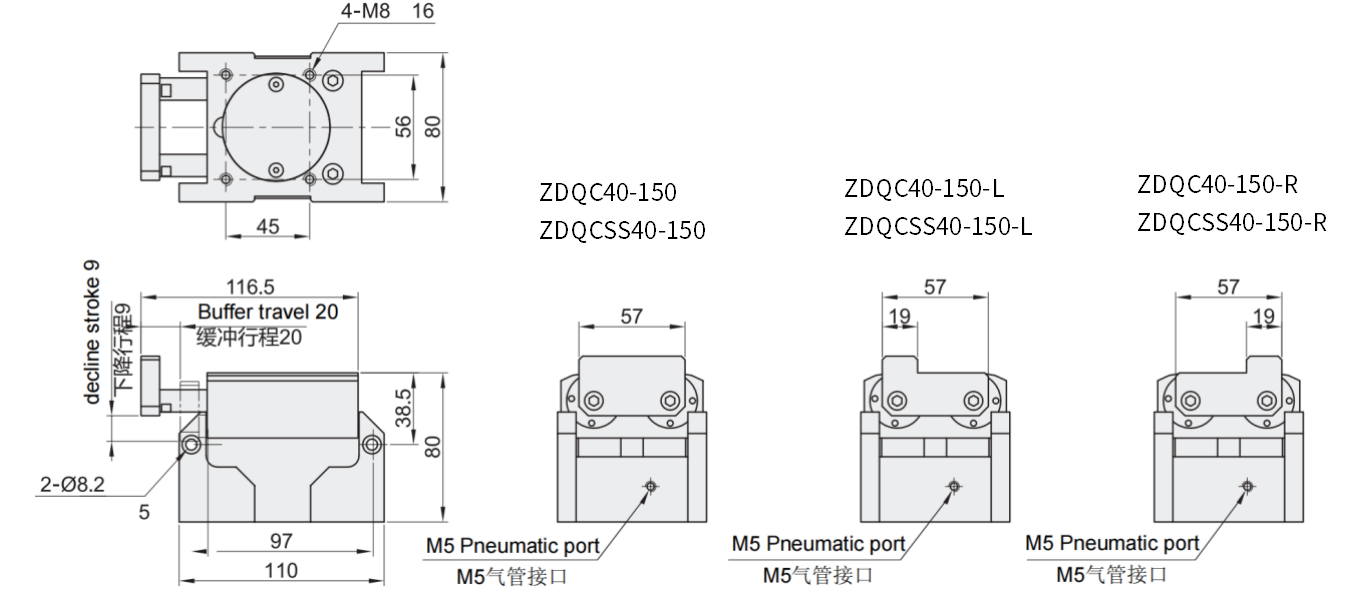

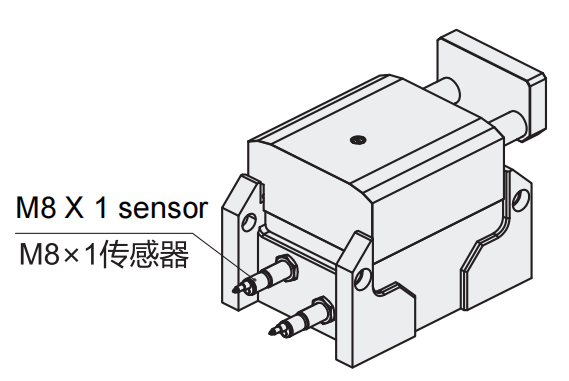

Sensor Mounting Diagram

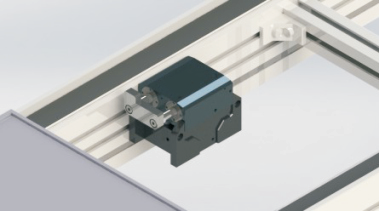

Example

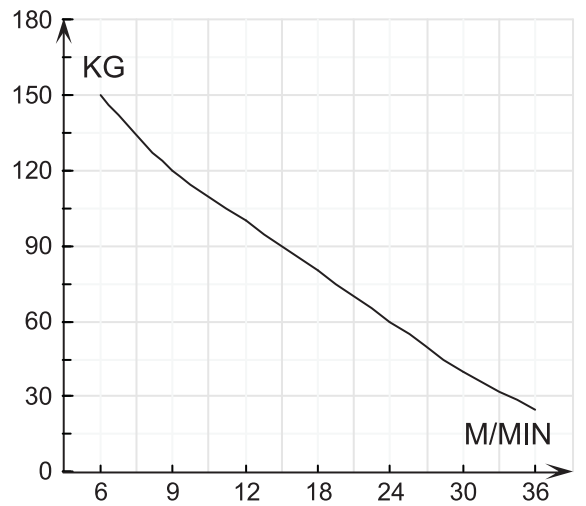

Stopping Capacity Curve
For load selection, refer to the Stopping Capacity Curve. All tabular data were tested at a working pressure of 0.5 MPa.
Pneumatic Circuit Diagram
Solenoid valves are not included in the scope of supply and must be purchased separately.
