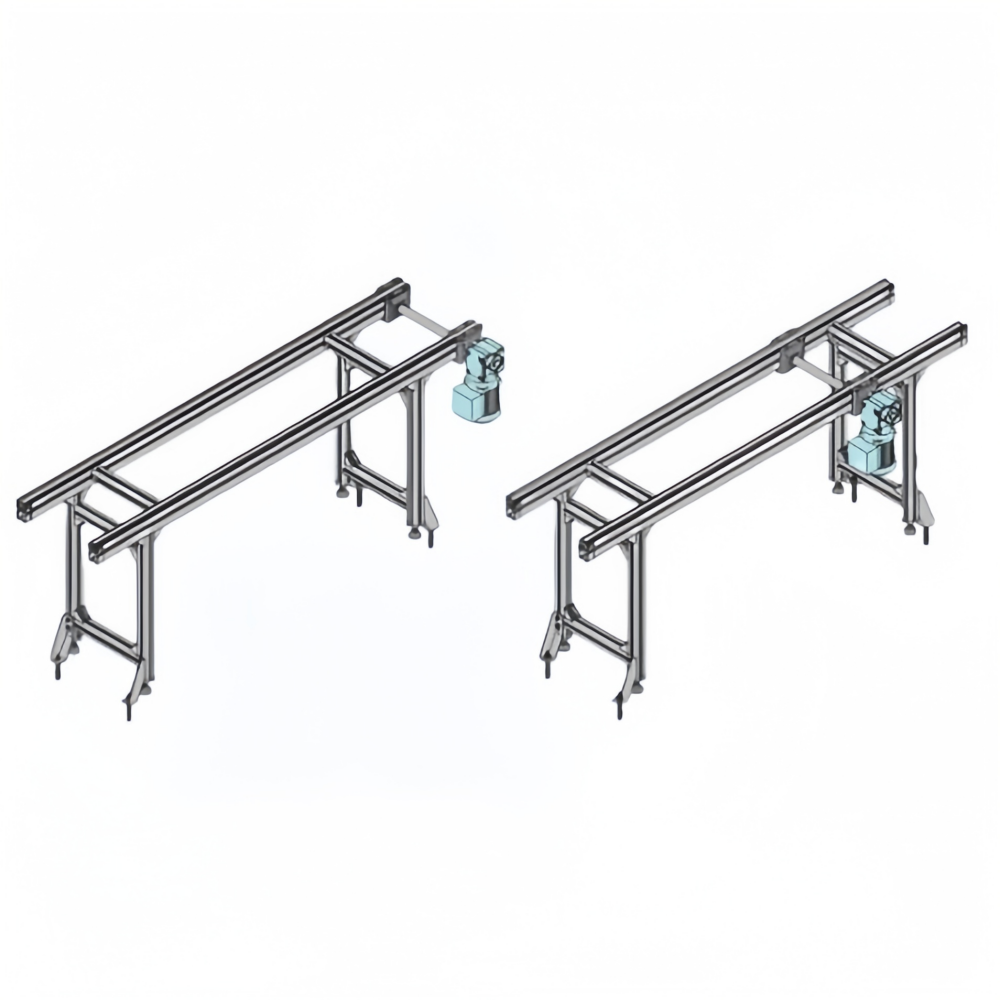

PCS1 Synchronous Belt Conveyor(End Drive/Center Drive)

▶ Workpiece pallets should be conveyed toward a drive unit. Reversible operation will lower a third of conveying capacity..

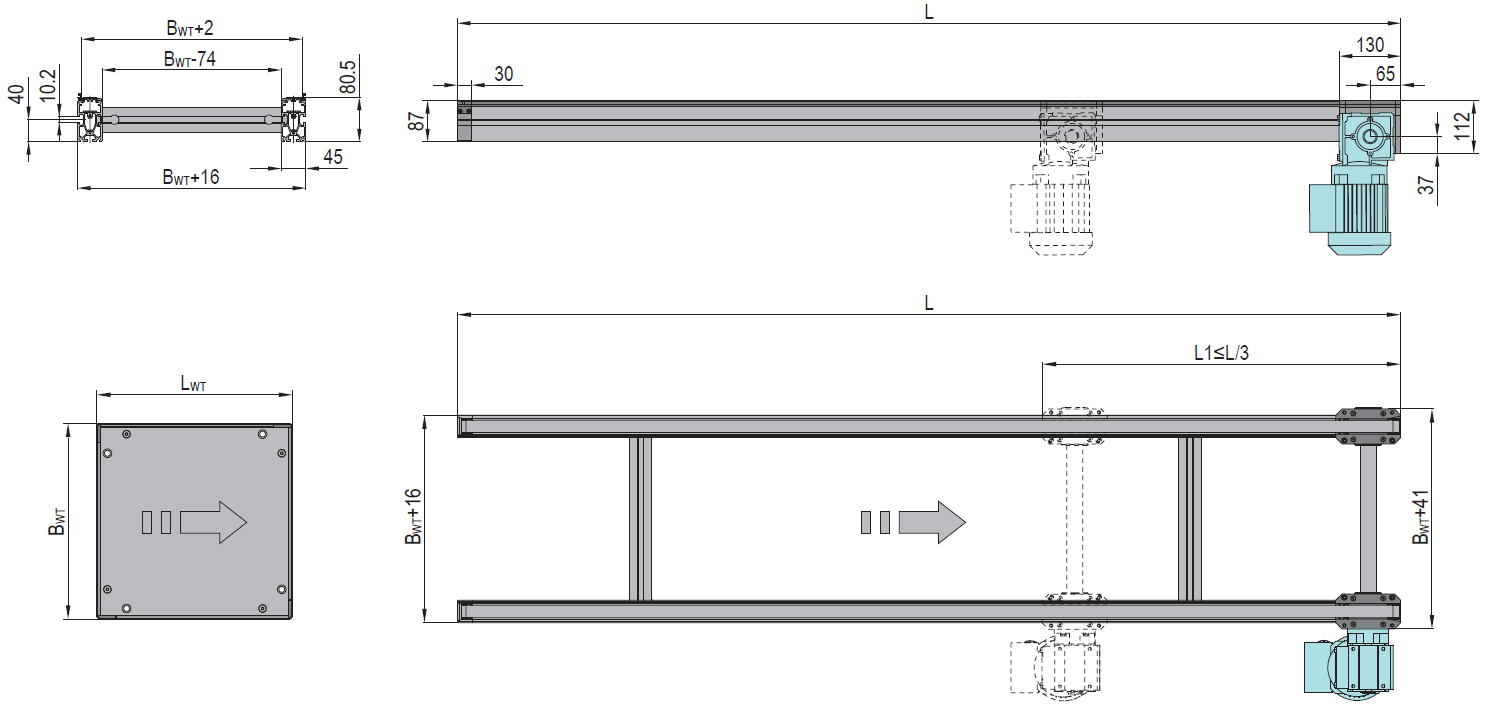

▶ When selecting center drive conveyor, the drive unit should be close to the conveyor end and within a third of conveyor length.

▶ The length of conveyor body should be multiple of five.

Specifications

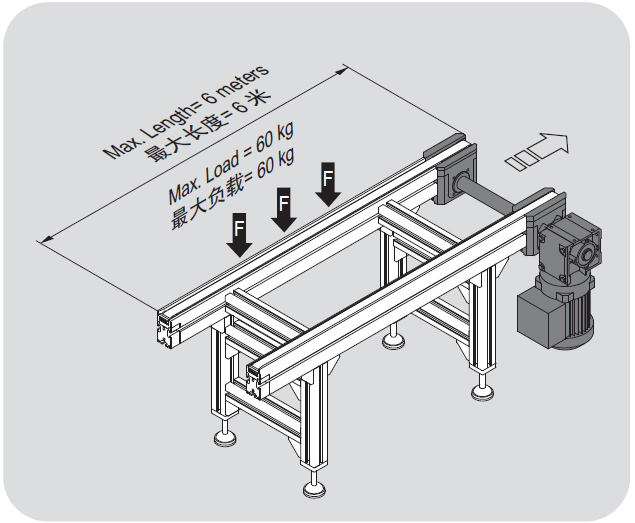

Load capacity: Unit Load Capacity≤1 kg/cm.

Features/Benefits

1.Modular design, part production in mold, easy to assemble and maintenance.

2.Due to its modular components, it can be adapted to suit specific production conditions and in conjunction with specific units including rotate unit, curve, lift and transverse unit and lift unit.

3.T slot aluminum profile frame for easy accessory attachment(sensor, bracket etc).

4.Conveying medium is antistatic toothed belt.

Industries Served

Factory Automation, Electronics, Automobile Parts etc.

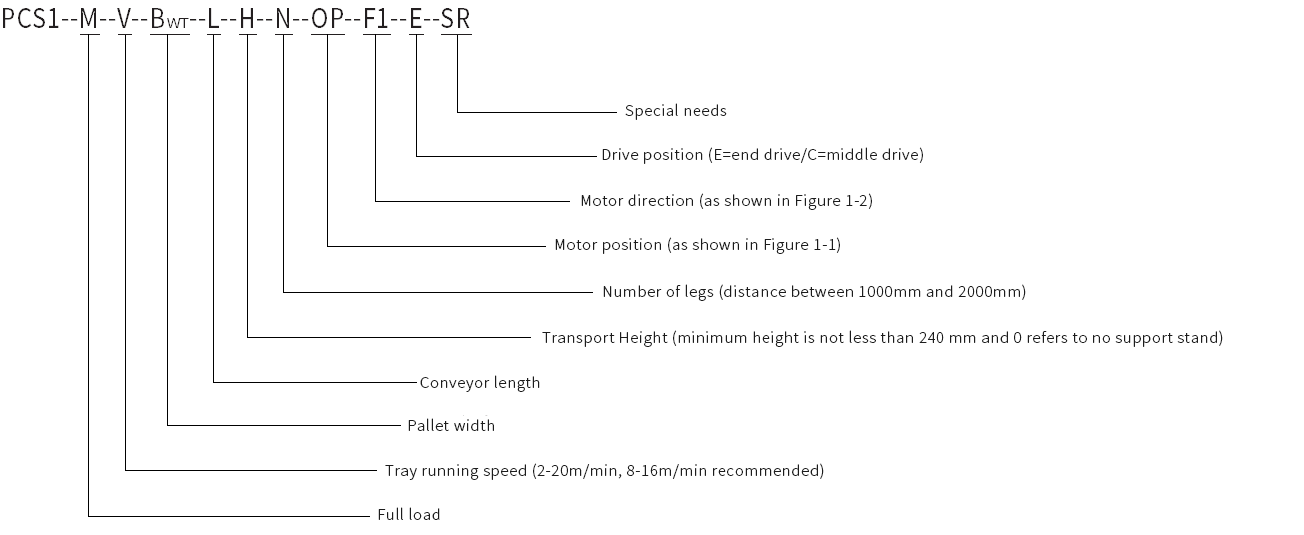

Ordering Reference

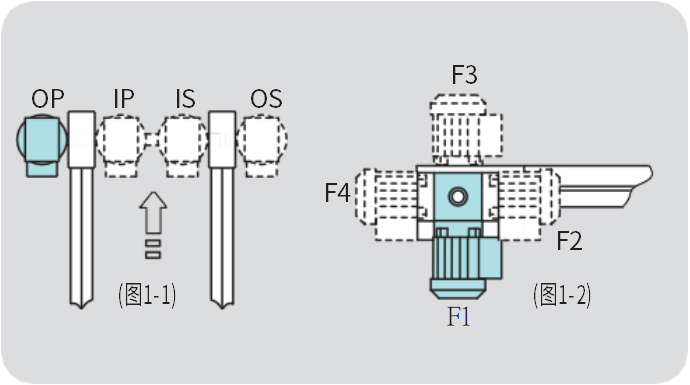

Motor layout

The direction of motor terminal box as figure indicated, and please contact us if special request needed.

Example:

PCS1—M30—V16—B _WT 160—L2000—H800—N2—OP—F1—C300

PCS1 Pallet conveyor — full load 30kg– pallet speed 16m/min– pallet width 160mm– line length 2000mm– conveying surface horizontal height 800mm– number of legs 2 groups — motor position OP– motor direction F1– middle drive L1=300mm.
