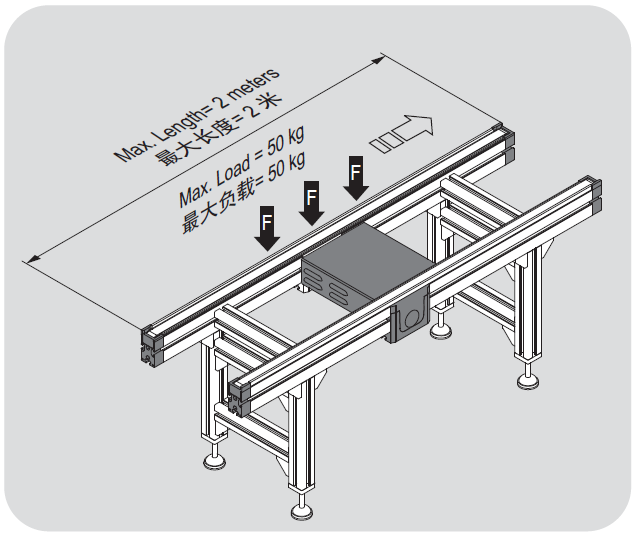

▶ Could be conveyed in reverse direction with total load capacity 50 kg max.

▶ The length of conveyor body should be multiple of five.

Specifications

▶ Load capacity: Unit Load Capacity ≤ 1 kg/cm

Features/Benefits

1.Modular design, part production in mold, easy to assemble and maintenance.

2.PCS1/MS conveyor could be used in conjunction with lift and transverse unit, rotate unit and lift unit etc.

3.T slot aluminum profile frame for easy accessory attachment (sensor, bracket etc).

4.Conveying medium is antistatic toothed belt.

5.To work with WP2.

Industries Served

Factory Automation, Electronics, Automobile Parts etc.

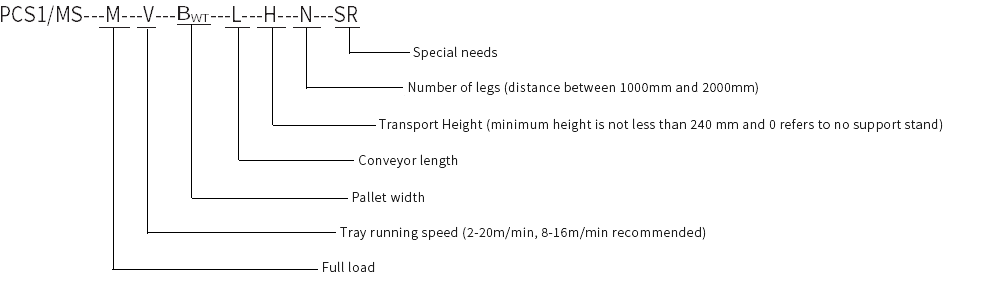

Ordering Reference

Example:

PCS1/MS—M30—V16—B _WT 160—L2000—H800—N2

PCS1/MS Pallet conveyor—full load 30kg—pallet speed 16m/min—Pallet width 160mm—line length 2000mm—conveying surface horizontal height 800mm—number of legs 2 groups.
