Quick Answer: There is no single “best” conveyor type — the right system depends on what you’re moving, how it’s packaged, and how much sanitation or accumulation control your line requires. Pallet conveyors are built for heavy, unitized loads moving between fixed stations. Modular plastic belt conveyors excel where washdown and hygiene matter. MDR (Motorized Drive Roller) conveyors with Zero Pressure Accumulation (ZPA) control are the standard for high-speed e-commerce sortation where package damage and energy efficiency are the priority. Most real-world facilities combine two or three of these systems into one integrated layout rather than relying on a single conveyor type end to end.
1. Start With the Product, Not the Conveyor
The most common sourcing mistake in conveyor selection is choosing equipment before fully mapping what actually moves through the facility. Before comparing conveyor types, document:
- Unit load type: loose parcels, palletized loads, trays, or bulk product.
- Weight range: light parcels (under a few kilograms) behave very differently on a conveyor than palletized loads measured in hundreds of kilograms.
- Sanitation requirements: food, pharmaceutical, and cosmetics lines require washdown-rated materials; general warehousing does not.
- Accumulation needs: does product need to queue, buffer, or merge without collision, or does it simply need to move point A to point B?
Once these four answers are clear, the conveyor type decision becomes far more straightforward.
2. Pallet Conveyor Systems: Built for Heavy, Unitized Loads
Pallet conveyors are engineered around one core job: moving heavy, palletized, or unitized loads reliably between fixed points — production stations, staging areas, or automated storage systems — without the load shifting or the structure flexing under weight.
Where pallet conveyors fit:
- Manufacturing lines moving work-in-progress between assembly stations.
- Warehouse staging areas feeding automated storage and retrieval systems (AS/RS).
- Heavy unit loads that would damage a lighter-duty roller or belt system over time.
Design considerations:
- Load capacity must be engineered for the heaviest pallet or unit load in your product mix, not the average.
- Structural rigidity matters more here than on lighter conveyor types — a pallet conveyor that flexes under load will develop premature wear at drive and support points.
- Modular sectioning allows a pallet conveyor line to be reconfigured or extended as production layouts change, which matters for facilities that expect to scale.

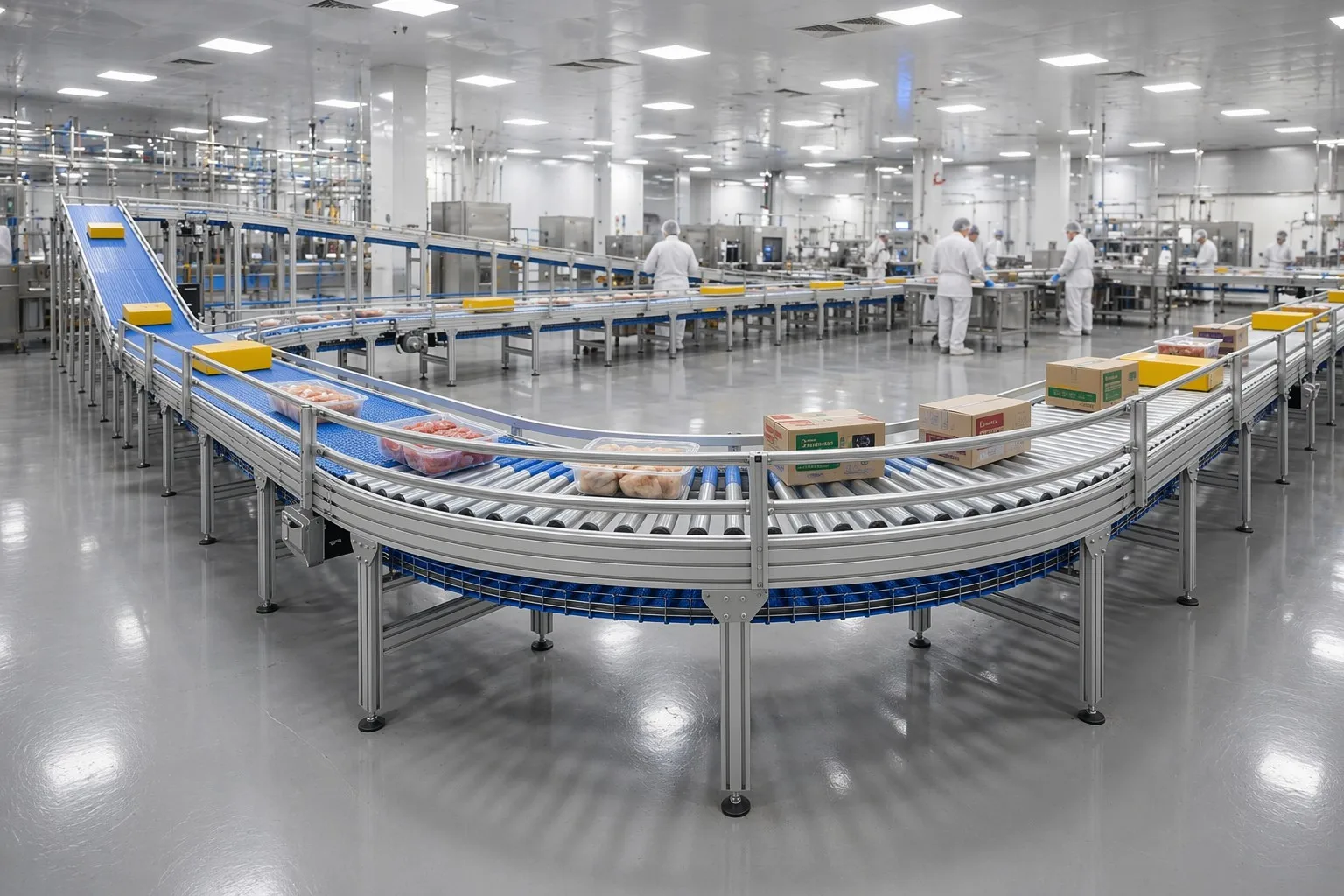

3. Modular Plastic Belt Conveyors: The Sanitation-First Choice
When a conveyor makes direct contact with food, pharmaceutical, or other sanitation-sensitive products, belt material and structure become a food-safety decision, not just a mechanical one.
Why modular plastic belts are preferred in high-sanitation environments:
- The belt consists of interlocking plastic segments rather than one continuous fabric-plied belt. If a section is damaged, a single segment can be replaced instead of the entire belt — reducing both downtime and the risk of a compromised belt surface harboring bacteria.
- Modular plastic belts avoid the fabric tension-ply construction found in traditional belts, which can absorb moisture and support biofilm growth if the outer cover is cut or worn.
- Open, hinge-style construction allows for straightforward Clean-in-Place (CIP) washdown procedures without disassembling the entire line.
TPU (thermoplastic polyurethane) belts as an alternative:
For facilities running heavier washdown cycles or requiring “Clean-Under” access, homogeneous TPU belts offer an advantage: because they are solid polyurethane through and through (not a plied composite), a surface cut or gouge does not expose an absorbent core layer the way a traditional plied belt can. TPU belts can also run at zero tension in some designs, allowing the belt to be lifted away from the frame for full structural cleaning — not just the belt surface.
| Factor | Modular Plastic Belt | TPU Belt |
|---|---|---|
| Repair approach | Replace individual segment | Typically full belt replacement |
| Structure | Interlocking segments | Homogeneous, solid material |
| Cut/gouge risk | Segment-contained | No absorbent core to expose |
| Clean-under access | Standard washdown | Zero-tension lift-away designs available |

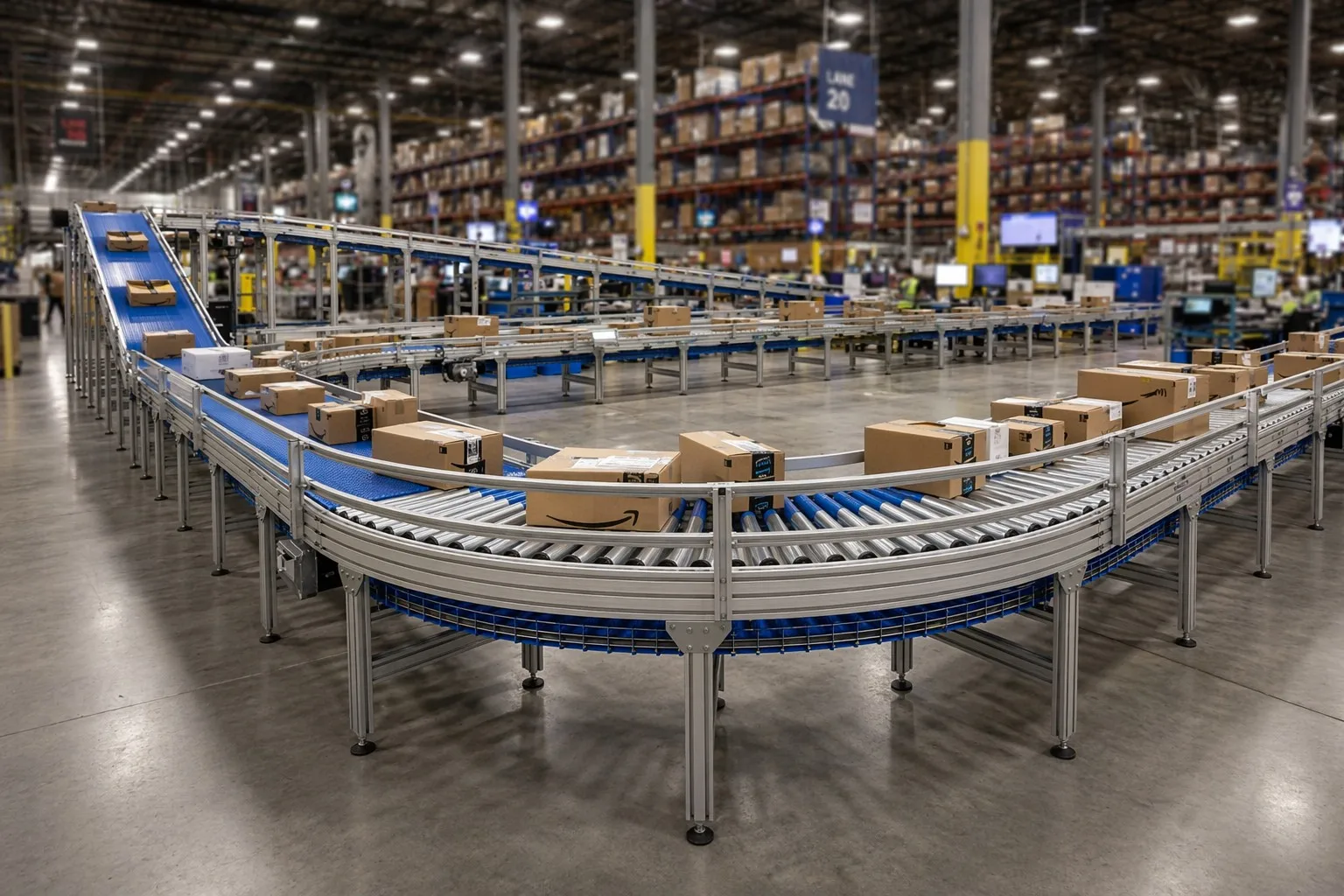

4. MDR + ZPA Conveyors: The Standard for E-Commerce Sortation
Where pallet conveyors move heavy unit loads and modular belts handle sanitation, Motorized Drive Roller (MDR) conveyors paired with Zero Pressure Accumulation (ZPA) control solve a different problem entirely: how to let packages queue, merge, and buffer at high speed without colliding or crushing each other.
How MDR conveyors work: Instead of one large central motor driving an entire conveyor line, MDR systems use small, independently powered rollers embedded within short zones — typically a few feet in length. Each zone has its own sensor and motor, allowing that section to start or stop independently of the rest of the line.
How ZPA control uses this zoning: ZPA logic means a package can stop and wait on the conveyor without physically pressing against the package ahead of it. Each zone senses whether the next zone downstream is occupied before releasing its own package forward. This “singulation” behavior eliminates the crushing and jamming that occurs on traditional continuously-running accumulation conveyors, where packages simply pile into whatever is stopped ahead of them.
Why this matters for warehouse operators:
- Reduced product damage: packages never physically press into one another while queued, which matters significantly for fragile goods, electronics, or soft packaging.
- Energy efficiency: because each zone only runs when a package is present and the downstream zone is clear, MDR/ZPA systems avoid the continuous-run energy draw of traditional belt or live-roller accumulation conveyors — a meaningful operating cost difference at scale.
- Retrofit flexibility: many existing conveyor frames can be retrofitted with MDR components to add ZPA functionality, though this requires replacing the drive mechanism and adding the necessary sensors — it is not a bolt-on accessory to a standard belt system.
5. Decoupling and Buffering: Why Rigid Line Coupling Fails at Scale
A conveyor design mistake that becomes expensive at high throughput is rigidly coupling every workstation directly to the next. If Station A feeds Station B directly and Station B experiences even a short delay — a label jam, a scan failure — the conveyor section immediately preceding Station B backs up, which in turn stops Station A. One small delay cascades backward through the entire line.
The fix is decoupling: inserting buffer zones and independent accumulation zones between major workstations. When Station B pauses, the buffer zone absorbs incoming product without halting Station A, which continues operating at full capacity while the downstream issue is resolved. This is precisely the layout advantage that MDR/ZPA zoning enables — each zone can independently hold product without transmitting the stoppage upstream.
6. Choosing Your Conveyor System: A Practical Framework
| If your priority is… | Start with… |
|---|---|
| Moving heavy palletized loads between fixed stations | Pallet conveyor |
| Washdown compliance for food, pharma, or cosmetics | Modular plastic belt or TPU belt |
| High-speed sortation with minimal package damage | MDR + ZPA conveyor |
| Preventing one slow station from stopping the whole line | Decoupling buffer zones (works alongside any conveyor type above) |
| Reconfiguring the line as production or order volume grows | Modular sectioning (available across pallet, belt, and MDR designs) |
Most real facilities are not choosing just one of these systems — a distribution center commonly runs MDR/ZPA sortation for parcel handling while using pallet conveyors to move bulk inbound stock, and a food packaging line often combines modular plastic belts for the product-contact zones with standard powered rollers for case handling downstream.
7. FAQ: Conveyor System Selection
Q: What is the difference between gravity roller and powered (MDR) roller conveyors?
A: Gravity roller conveyors rely on gravity or manual pushing and are cost-effective for horizontal or descending paths with no accumulation control needed. Powered roller (MDR) conveyors use internal motorized rollers to actively control product flow, speed, and zoning — essential when you need automated accumulation or zero-pressure sorting rather than simple point-to-point movement.
Q: Are TPU conveyor belts compatible with standard conveyor sprockets and frames?
A: Compatibility depends on the specific belt profile and existing frame design — confirm sprocket pitch and frame width with your conveyor engineer before specifying a TPU retrofit, since not every modular plastic belt frame is built to accept a TPU belt without modification.
Q: How does ZPA prevent product damage in food packaging lines specifically?
A: ZPA allows packages or trays to accumulate without touching, which prevents shingling or deformation — particularly important in food packaging where crushed containers can force product out of a package and onto the conveyor, increasing organic contamination load on the line.
Q: Can I retrofit an existing conveyor line with MDR/ZPA instead of replacing it entirely?
A: Many existing conveyor frames can be retrofitted with MDR components to achieve ZPA functionality. This typically requires replacing the drive mechanism and adding photo-eye sensors at each zone — a meaningful upgrade project, but generally more cost-effective than a full line replacement.
Q: Why do decoupling buffer zones matter if my line already runs MDR/ZPA?
A: ZPA solves package-to-package collision within a zone; decoupling buffer zones solve station-to-station cascading stoppages. You need both concepts working together — ZPA at the package level and buffer zones at the workstation level — to prevent a single slow station from halting your entire throughput.
