ZDTC25-150 Corner Buffered Stopper

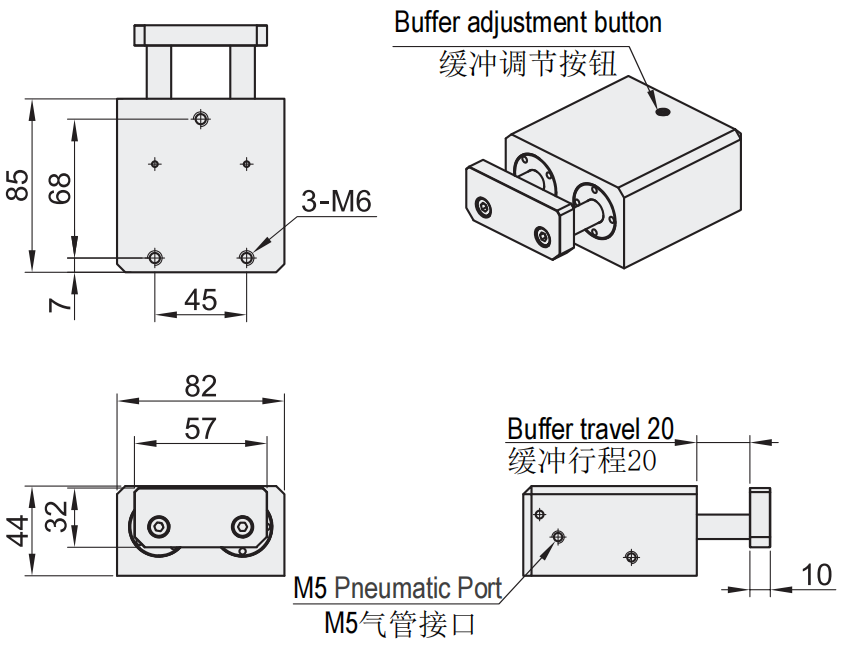

| ZDTC25-150 ZDTC25-150-D | ZDTC25-150-L ZDTC25-150-LD |
 |  |
ZDTC25-150
| Model | Type | Blocking Load | Material | Surface Treatment | |||||
| ZDTC25-150 | Corner Buffered Stopper | Flat block buffer blocker | Single acting | 150kg | Aluminum Material | Black Anodizing | |||
| ZDTC25-150-D | Double acting | ||||||||

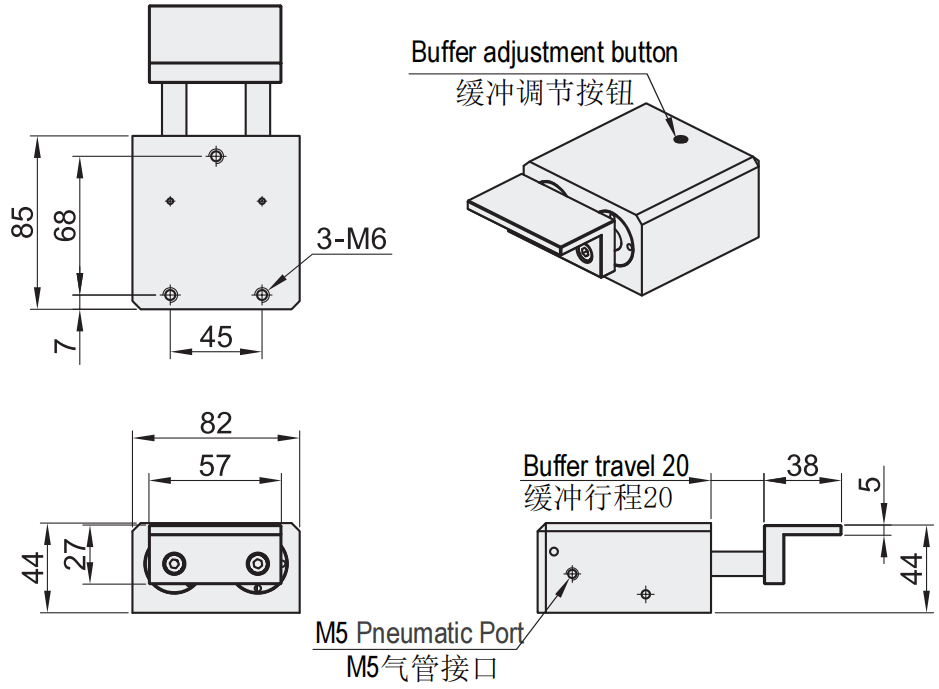

| ZDTC25-150-L | L-shaped stopper buffer blocker | Single acting | |||||||
| ZDTC25-150-LD | Double acting | ||||||||
Features/Benefits
| Main Functions | Buffer stop |
| Load Range (kg) | 10~150(at conveying speed 6m/min) |
| Cylinder Action Type | Single-acting/Double-acting |
| Pneumatic Connector Size | M5 |
| Working Pressure (MPa) | 0.5 |
| Cushioning Function | Yes |
| Installation Method | Bottom installation |
| Stopping Stroke(mm) | Buffer travel 20 |
Cushioned stopping is not applicable for cumulative blocking operations, but can be utilized for positional stopping functions.
Example

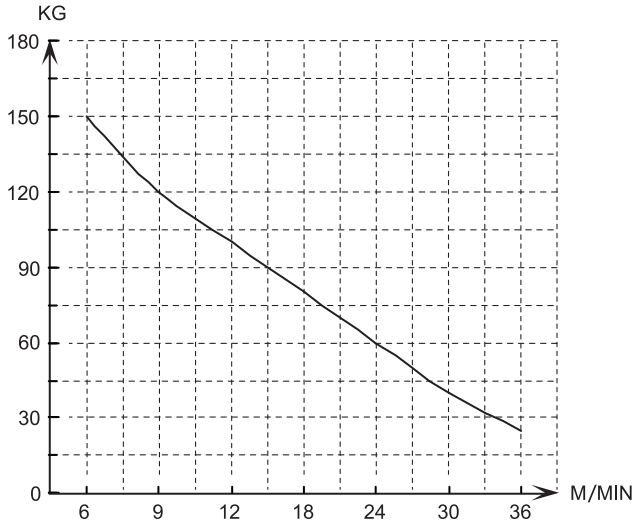

Stopping Capacity Curve
For load selection, refer to the Stopping Capacity Curve. All tabular data were tested at a working pressure of 0.5 MPa.
Pneumatic Circuit Diagram
Solenoid valves are not included in the scope of supply and must be purchased separately.
