ZDQ32-400 No bufferless Stopper

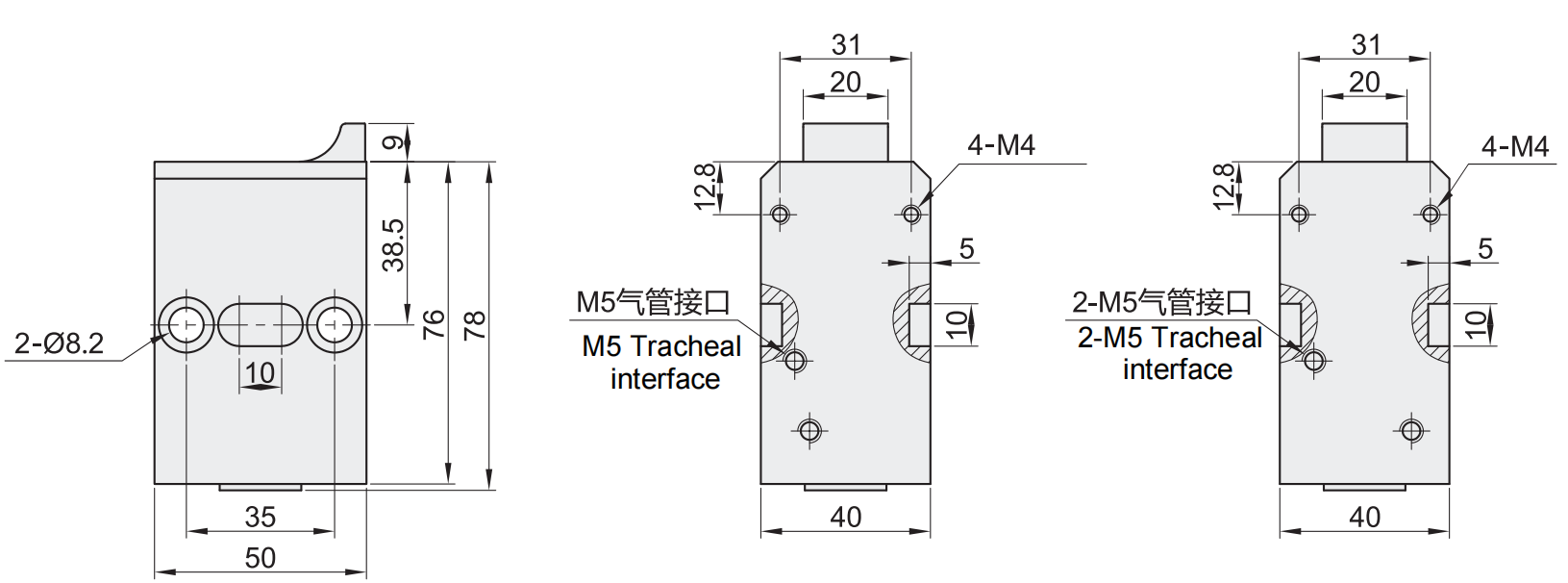

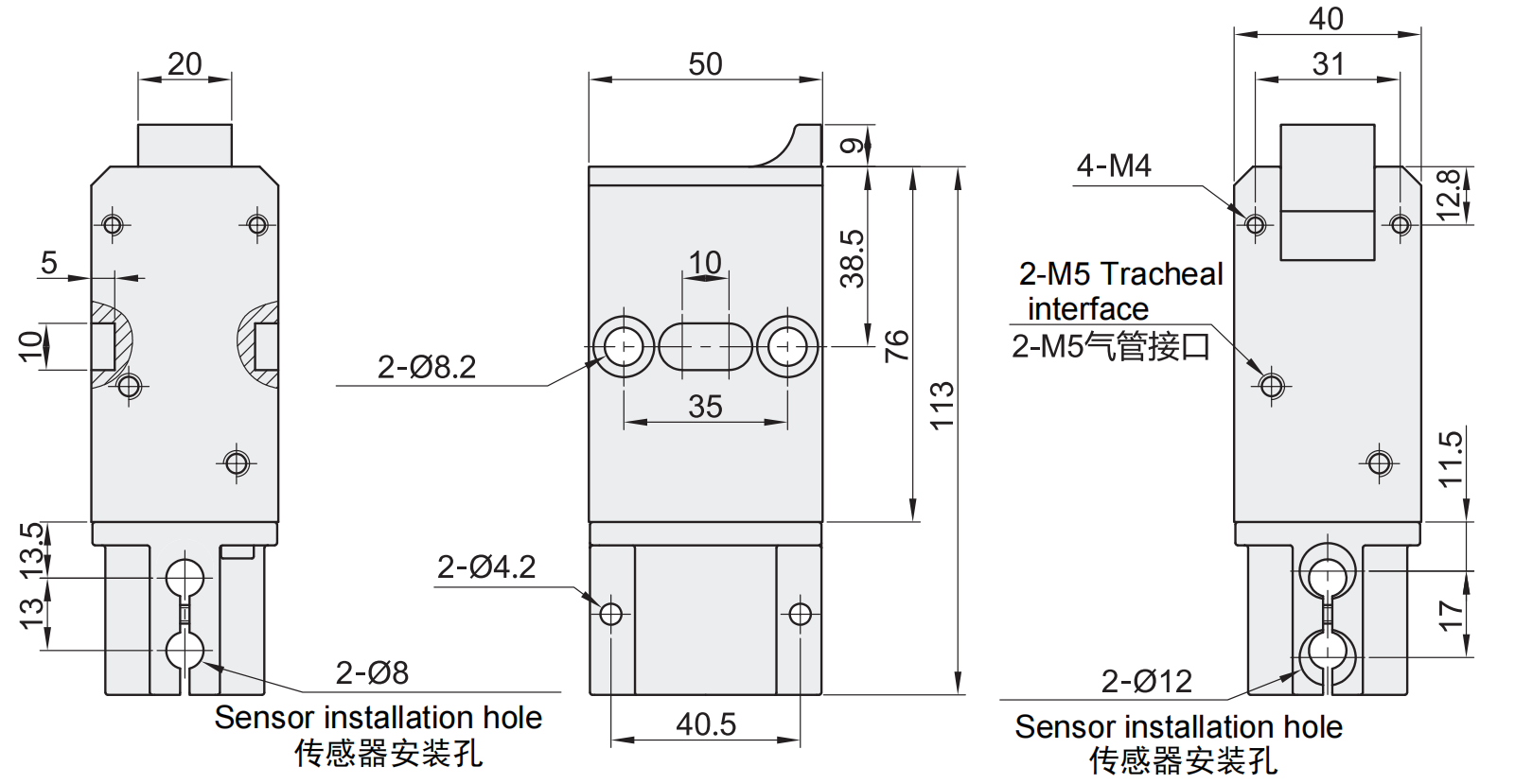

ZDQ32-400, ZDQ32-400-H, ZDQ32-400-D

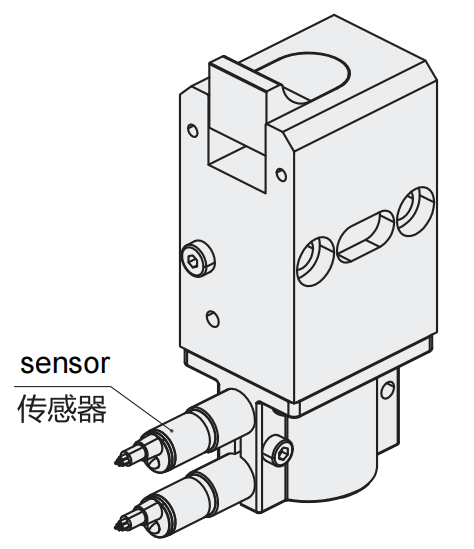

| ZDQS32-400, ZDQS32-400-D | Sensor Mounting Diagram |
 |  |
ZDQ32-400
| Model | Type | Blocking Load | Material | Surface Treatment | |||||
| ZDQ32-400 | No bufferless Stopper | Single acting | Standard Type | 400kg | Aluminum Material | Black Anodizing | |||
| ZDQ32-400-H | High-temperature Resistant (100°C) | ||||||||
| ZDQS32-400 | With Position Detection Module | ||||||||
| ZDQ32-400-D | Double acting | Standard Type | |||||||
Features/Benefits
| Main Functions | Instantaneous blocking and releasing to achieve accumulation control. |
| Load Range (kg) | 400 (at conveying speed 6m/min) |
| Cylinder Action Type | Single-acting/Double-acting |
| Pneumatic Connector Size | M5 |
| Working Pressure (MPa) | 0.5 |
| Cushioning Function | No |
| Installation Method | Side Mounting |
| Lowering Stroke (mm) | Lowering Stroke 9 |
Used for basic stopping functions, can be employed for accumulative stopping, and is not recommended for positioning stop applications.
Example

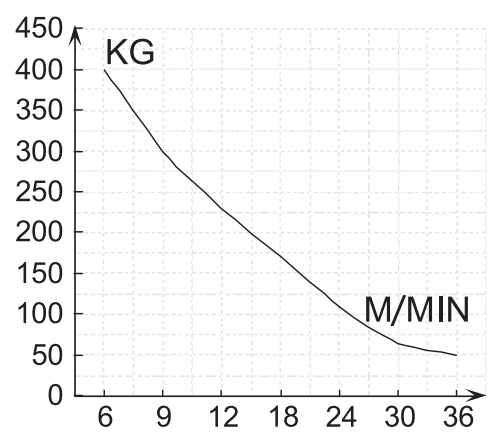

Stopping Capacity Curve
For load selection, refer to the Stopping Capacity Curve. All tabular data were tested at a working pressure of 0.5 MPa.
Pneumatic Circuit Diagram
Solenoid valves are not included in the scope of supply and must be purchased separately.
