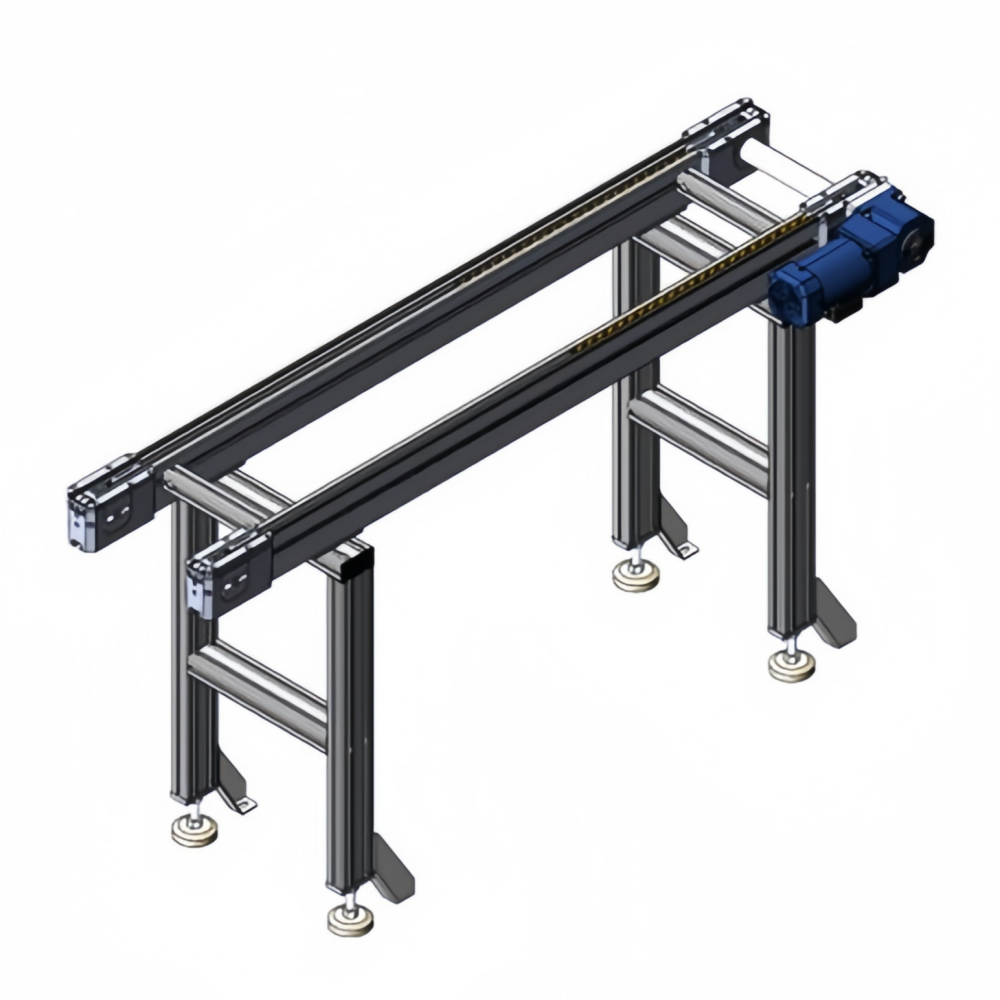

PCS2/L 08BS Pallet Conveyor

▶ Workpiece pallets should be conveyed toward a drive unit, reversible operation is forbidden.

Specifications

Load Capacity:

Unit Load Capacity： ≤ 2.0 kg/cm (Steel chain)

≤ 1.5 kg/cm (Nylon wheel chain).

Features/Benefits

1.Modular design, part production in mold, easy to assemble and maintenance. For middle and big load conveying.

2.Due to its modular components, it can be adapted to suit specific production conditions and in conjunction with specific units including rotate unit, curve, lift and transverse unit and lift unit.

3.T slot aluminum profile frame for easy accessory attachment (sensor, bracket etc).

Industries Served

Factory Automation, Home Appliances, Electronics, Automobile Parts etc.

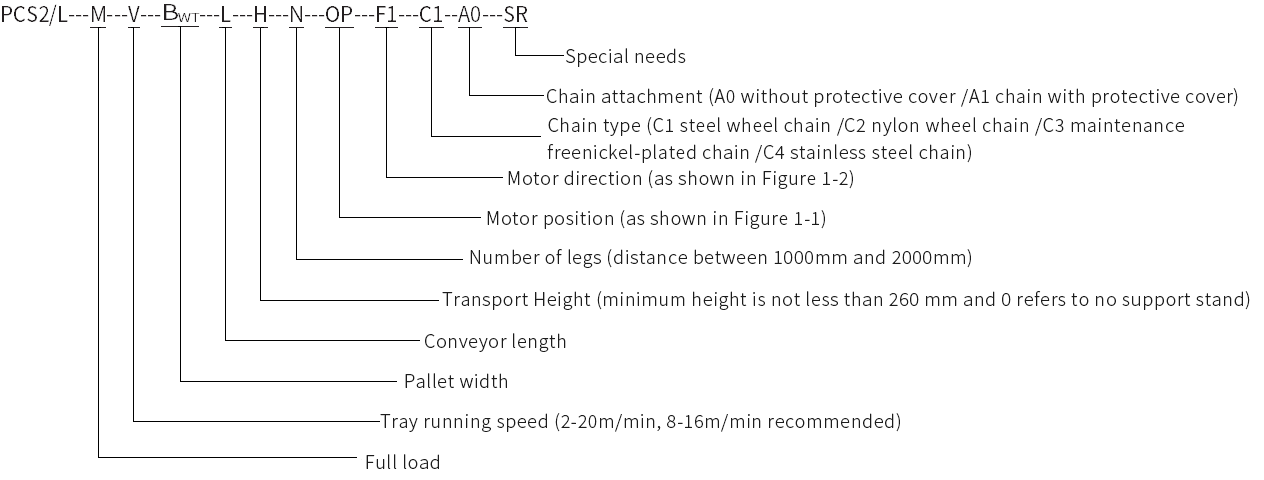

Ordering Reference

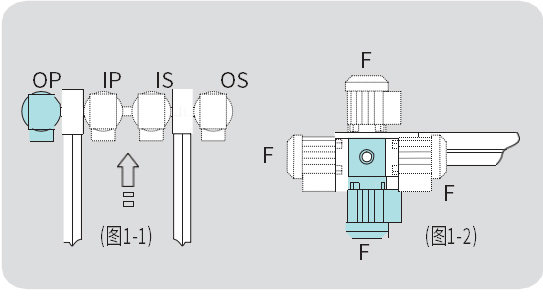

Motor layout:

The direction of motor terminal box as figure indicated, and please contact us if special request needed.

Example:

PCS2/L—M300—V16–B _WT 320—L2000—H800—N2—OP—F1—C1–A0

PCS2/L Pallet conveyor —Full load 300 kg– pallet speed 16 m/min– Pallet width 320 mm– line length 2000 mm– conveying surface horizontal height 800 mm– number of legs 2 Group — Motor position OP– motor direction F1– Steel wheel chain — without protective cover.
