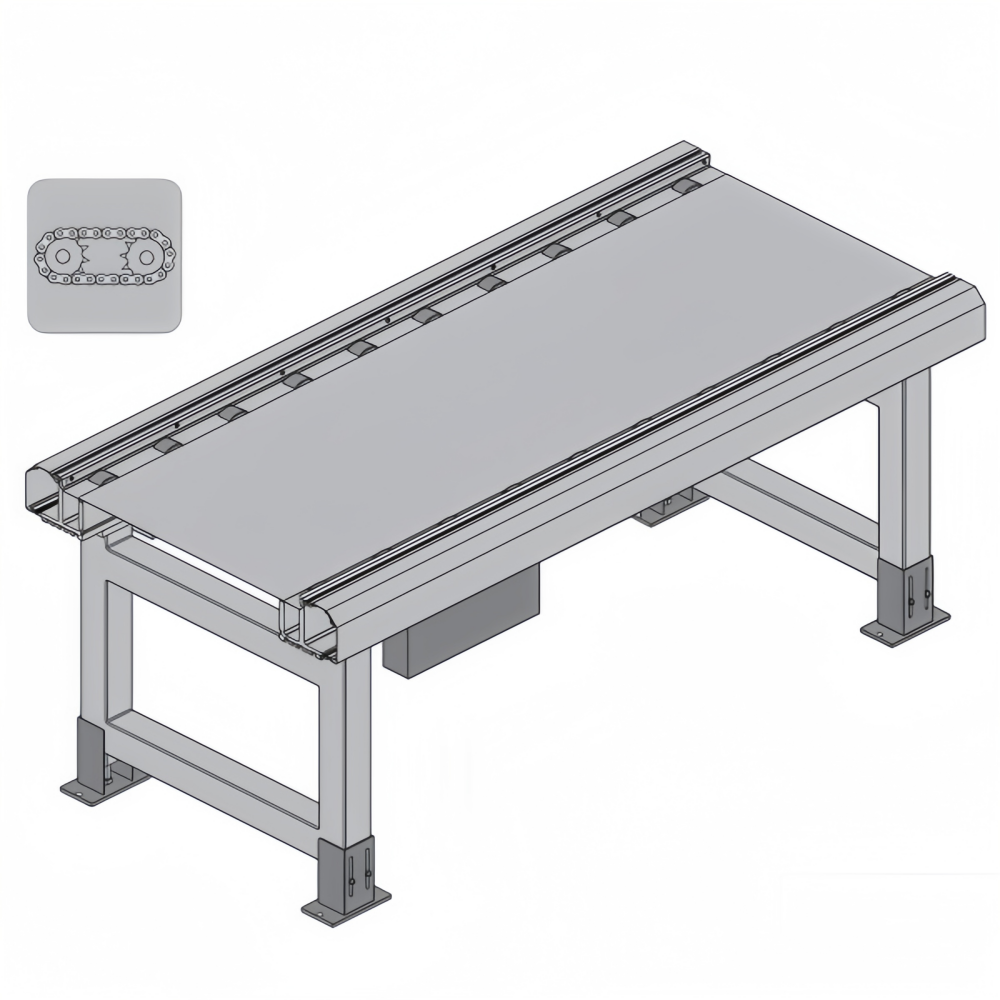

PCS5-BG2 Double Support and Bevel Gear Drive

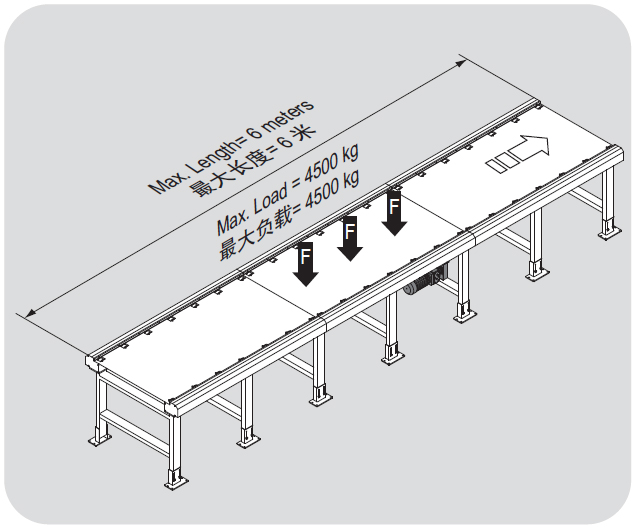

▶ The maximum length of conveyor is determined by the combinating of the roller spacing and the number of working rollers. In case of special needs for roller spacing, please contact with us.

Specifications

Load capacity: Unit Load Capacity≤  200 kg for each pair of roollers

Features /Benefits

1.Modular design of standard unit (recommended length of standard unit is 1905 mm, 1968 mm and 1981mm

respectively according to diffenent roller spacing).

2.Suitable for heavy load pallet conveying which can achieve flexible control.

3.In conjunction with rotate unit and lift transverse unit to achieve automation cycle control.

Industries Served

Automatic assembly detection production line (automotive engine, transmission assembly line, circuit breaker etc).

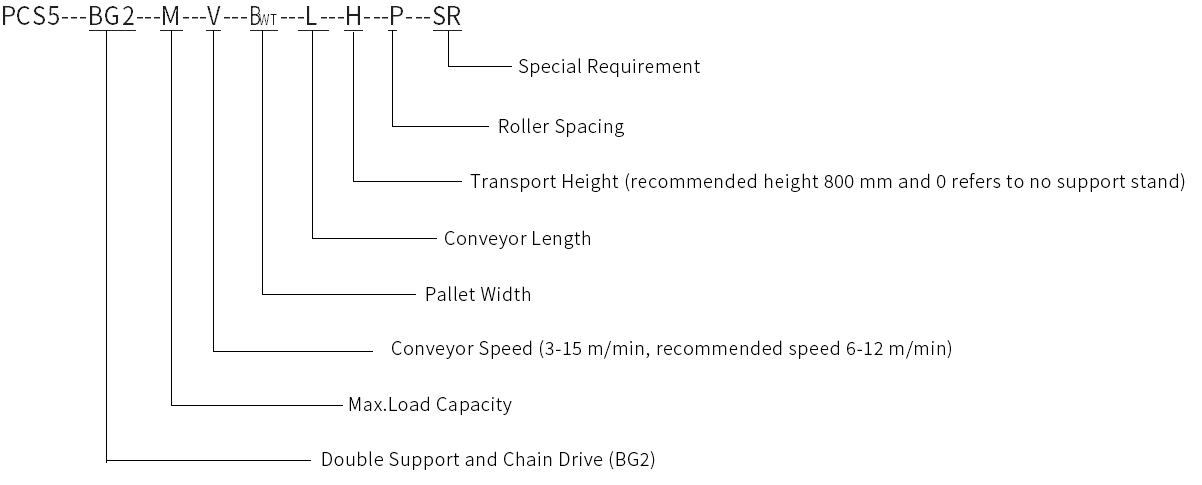

Ordering Reference

Example:

PCS5—BG2—M2000—V12–B _WT 500—L2000—H800—P158

PCS5 pallet conveyor—BG2—max.load capacity 2000 kg—conveyor speed 12 m/min—pallet width 500 mm—conveyor length 2000 mm—transport height 800 mm—roller spacing 158 mm.
