90º Round Belt Curve (slave driven)
▶ Maximum load capacity per pallet≤10kg .
▶ 90°curve conveying of the workpiece pallet one by one without accumulation operation.
▶ Length-width ratio cannot exceed 1.5time of the pallet itself (L WT /B WT ≤1.5).
▶ To work with WP2.

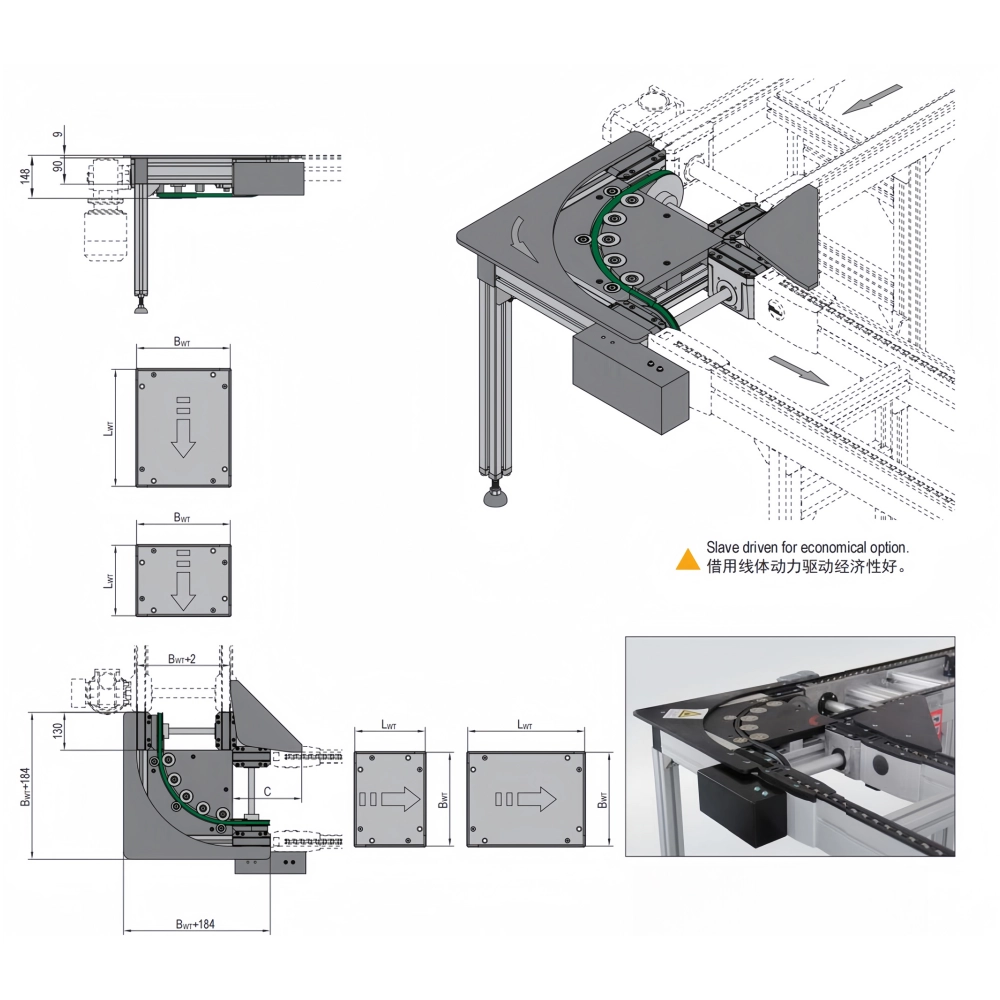

Specifications
| BWT (mm) | L WT (mm) | C(PCS1)(mm) | C(PCS2)(mm) |
| 160 | 160 | 130 | 130 |
| 240 | 260 | 300 | |
| 240 | 160 | 130 | 130 |
| 240 | 260 | 300 | |
| 320 | 260 | 300 | |
| 320 | 240 | 260 | 300 |
| 320 | 260 | 300 | |
| 400 | 300 | 300 |
Features/Benefits
1. Modular design, easy to assemble and maintenance.
2. 90º curve conveying of the pallet within the standard pallet width of 320mm and without changing the direction of pallet, and 30kg rotate unit is recommend for conveying of large size pallet.
3. The slot aluminum profile frame for easy accessory attachment(sensor, bracket etc).
Ordering Reference
Example:

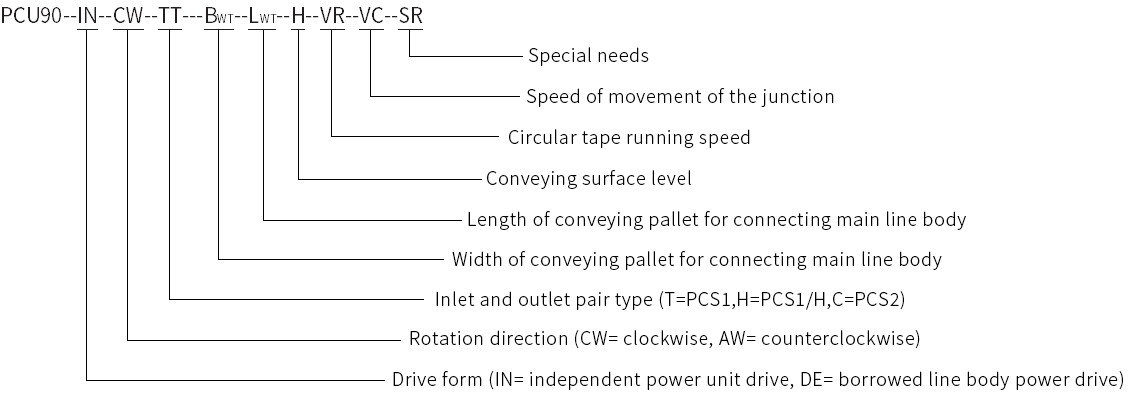

PCU90—IN—CW—TT—B WT 240—L WT 320—VR27—VC15
90º round belt curve—self-powered—clockwise rotation—PCS1 conveyor for both input and output—pallet width of connecting main conveyor 240mm— pallet length of connecting main conveyor 320mm—transport height 650mm—curve speed 27m/min—speed of connecting main conveyor 15m/min.
