30kg Lift and Transverse Conveyor Unit for Pallet Systems | YUTUO

▶ 30kg Lift Transverse Unit excludes stop unit.

▶ Maximum load capacity per pallets≤30kg.

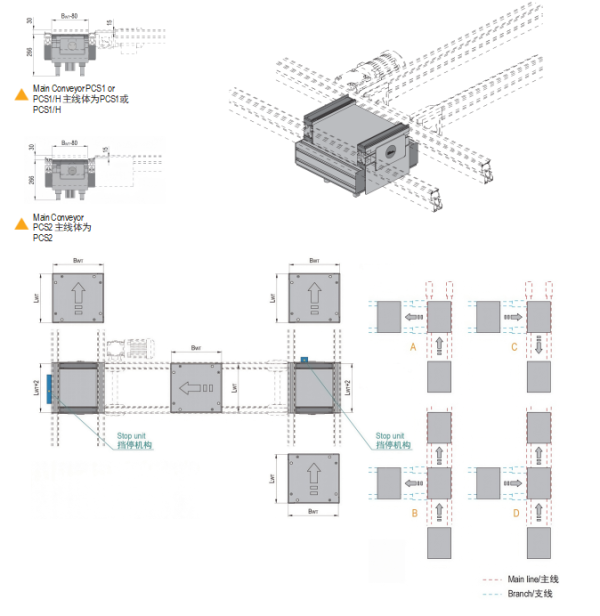

Specifications

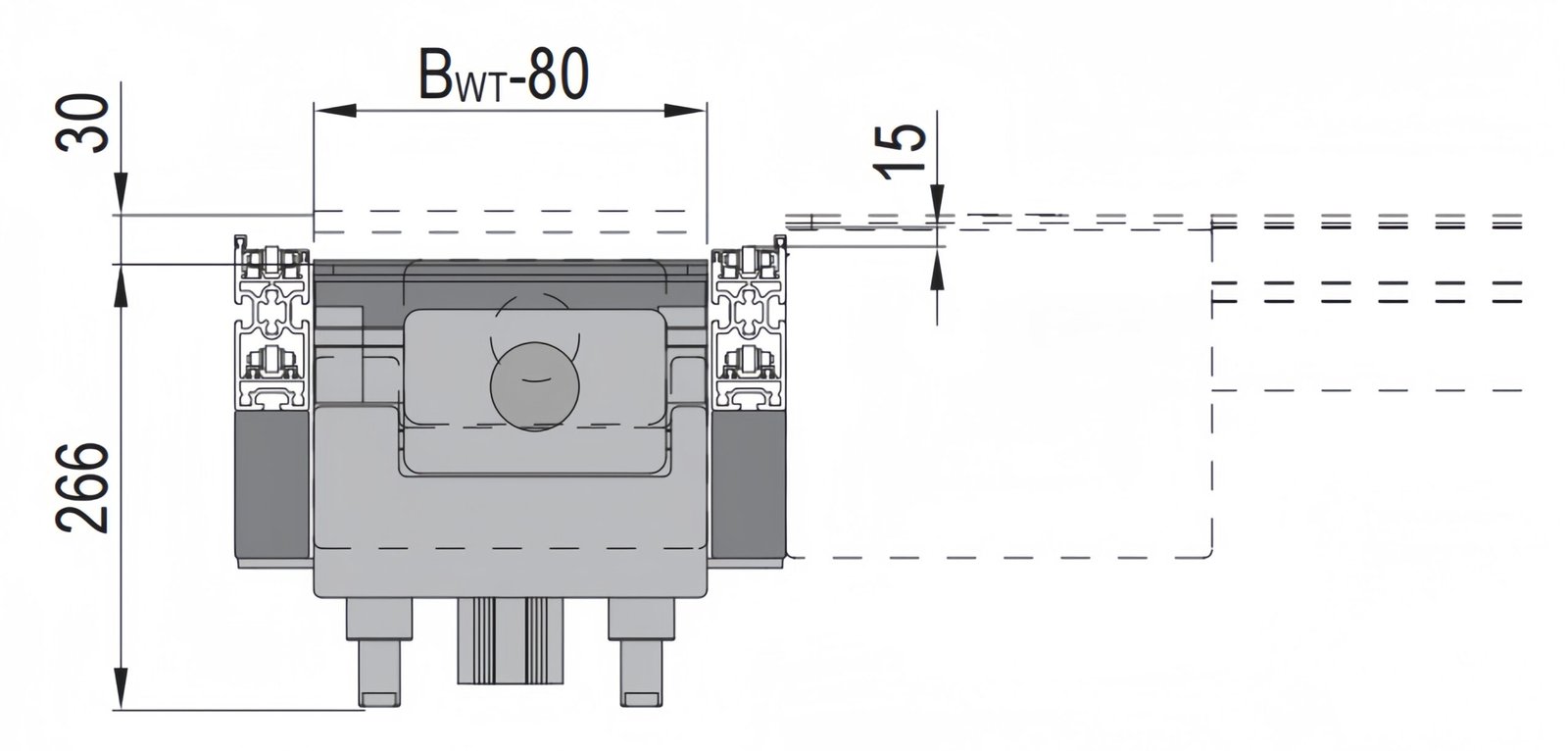

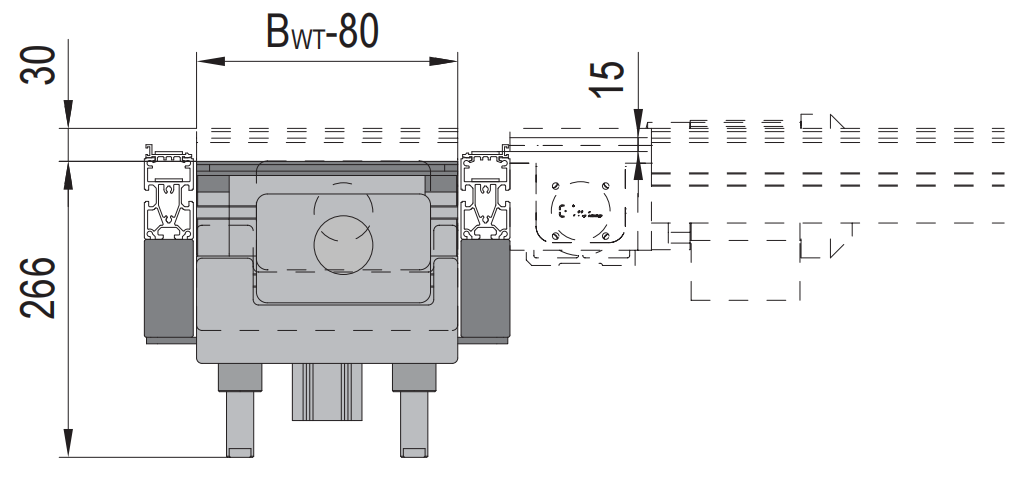

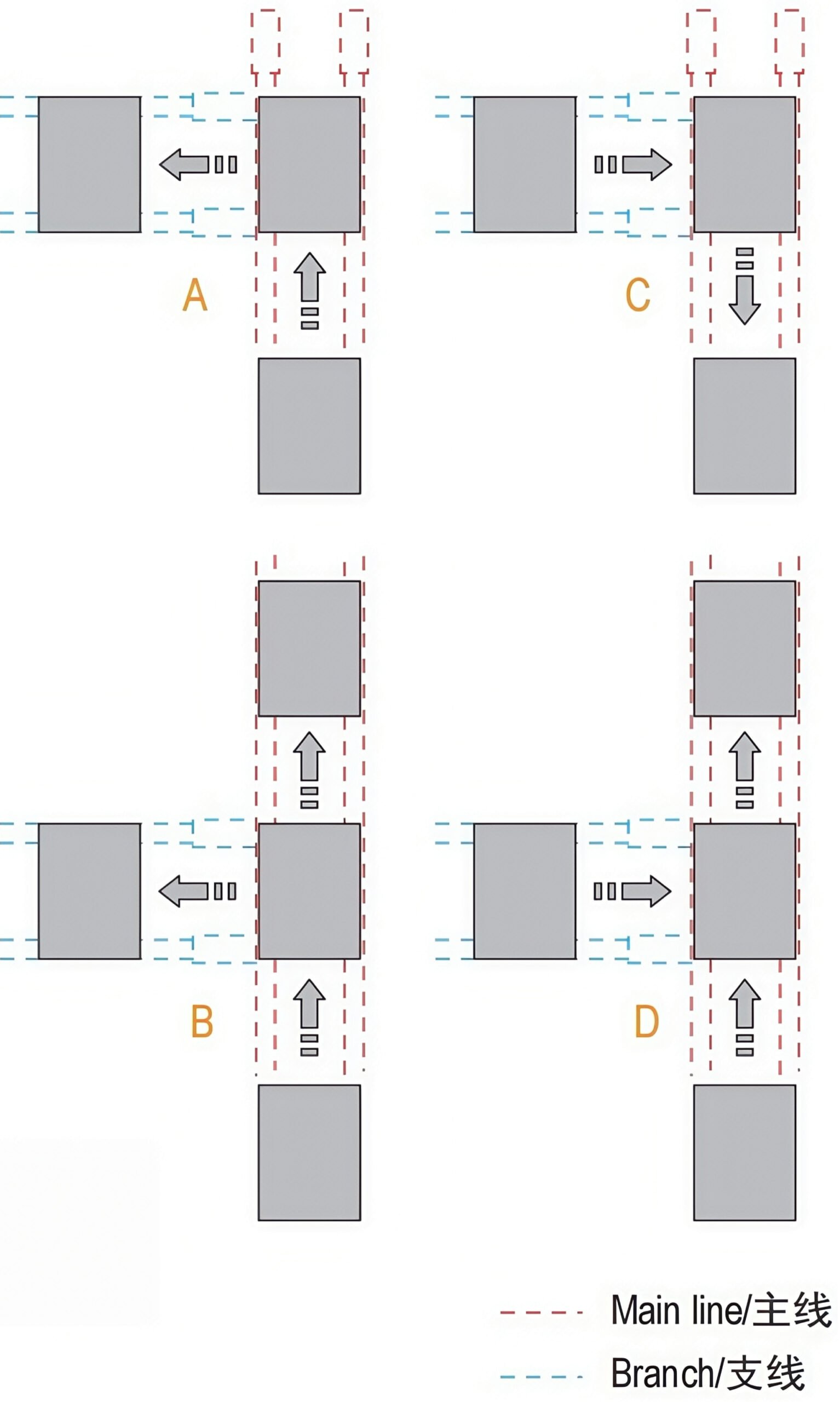

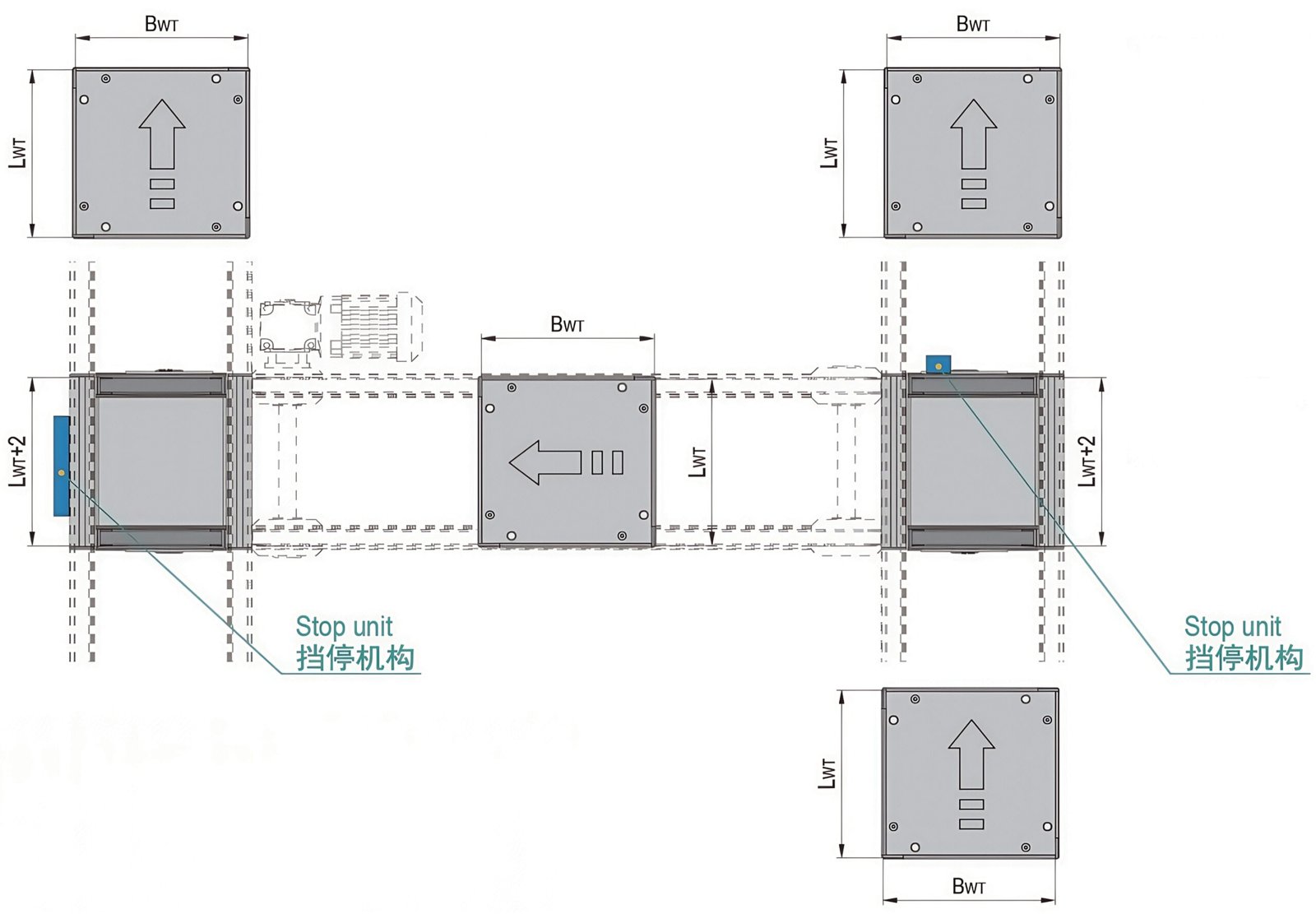

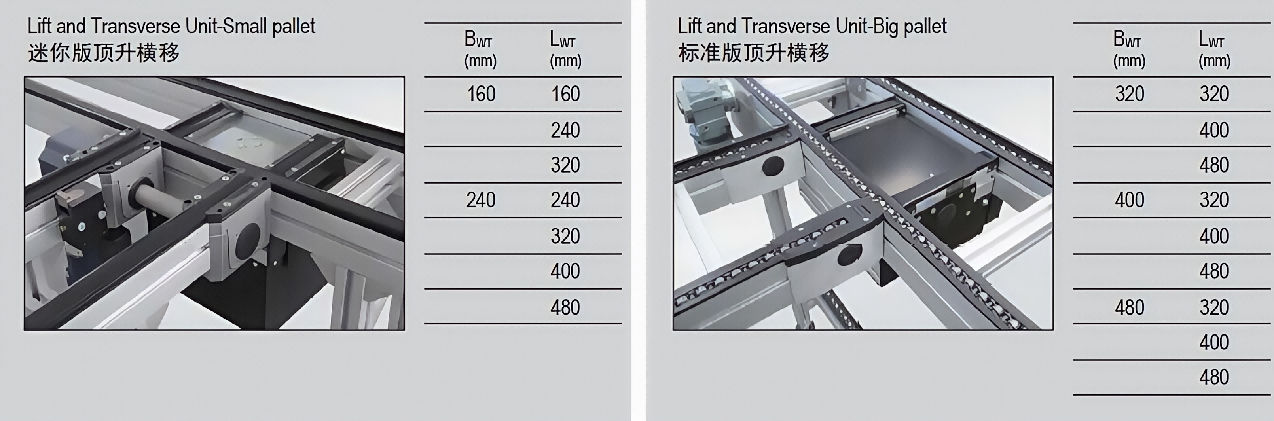

Please cross check in the following table the pallet size suitable for lift and transverse unit type A/B/C/D when the branch line is PCS1 or PCS2.

Transfer Method	PCS1	PCS1/H	PCS2
A	_BWT ≥160	BWT _≥300	BWT _≥300
B	BWT _≥160	BWT _≥300	BWT _≥300
C	BWT _≥160	BWT _≥240	BWT _≥240
D	BWT _≥160	BWT _≥240	BWT _≥240

Please contact us for non-standard size of pallet.

Features/Benefits

1.Modular design, easy to assemble and maintenance.

2.Lift and transverse unit move the workpiece pallets from a transverse conveyor section onto a longitudinal conveyor section with changing direction of pallet.

3.T slot aluminum profile frame for easy accessory attachment(sensor, bracket etc).

4.Conveying medium is antistatic toothed belt.

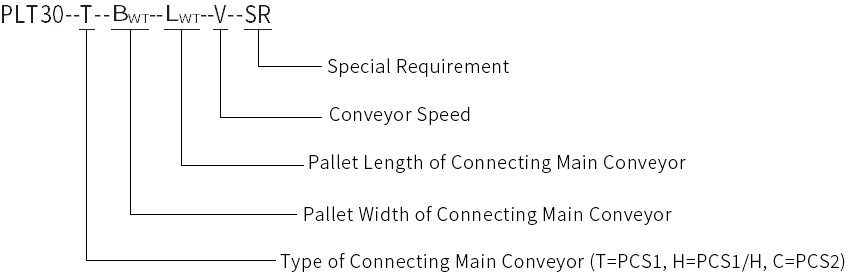

Ordering Reference

Example:

PLT30—T—B _WT 320—L _WT 320—V10

30kg lift and transverse unit—main conveyor of PCS1—pallet width of connecting main conveyor 320mm–pallet length of connecting main conveyor 320mm— conveyor speed 10m/min.

This 30kg lift and transverse conveyor unit is designed for pallet systems requiring both vertical and horizontal movement in compact automation lines.
